Product Description
View in 3D

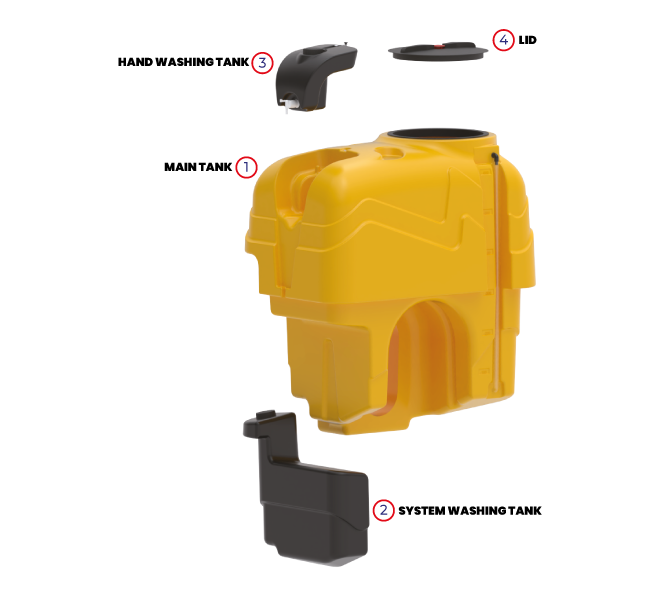

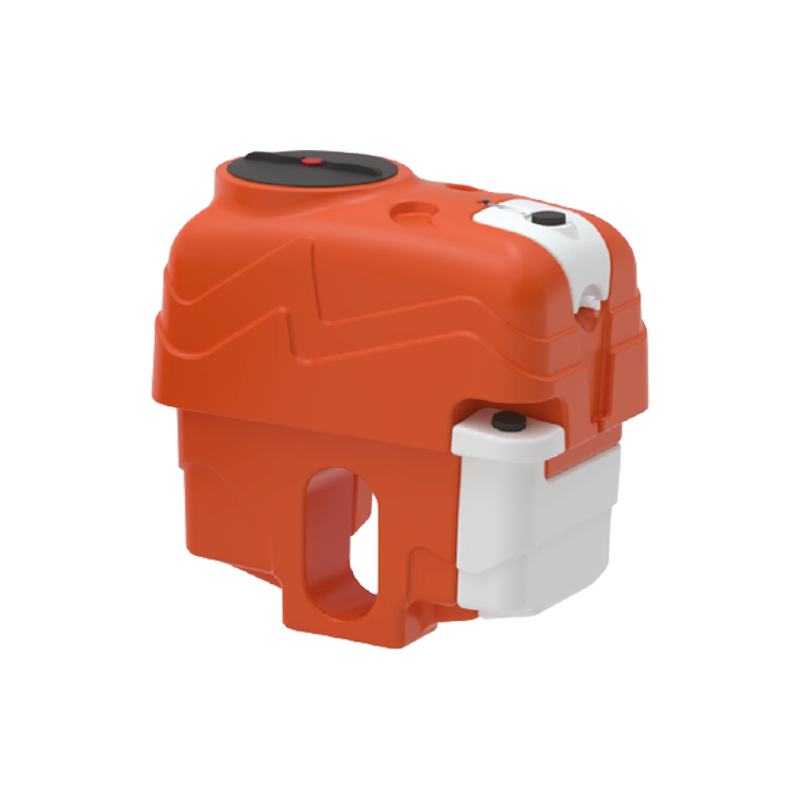

Manufactured using polyethylene raw material, the COSMO SERIES consists of a main tank, a system washing tank, and a hand washing tank. The design is fully optimized for operator use.
400 L – 500 L – 600 L – 800 L – 1000 L
COLOR OPTIONS
RAL-9003
Painted White
RAL-7047
Opaque Gray
GR-01
Light Gray
GR-305
Painted Gray
RAL-7024
Dark Gray
RAL-9011
Black
M-80
Pastel Blue
RAL-5012
Light Blue
M-82
Dark Blue
M-83
Turquoise
M-78
Ultramarine Blue
RAL-1026
Bright Yellow
RAL-1003
Yellow
RAL-2000
Orange
T-04
Pure Orange
RAL-3020
Red
KH-49
Dark Brown
RAL-4005
Purple
P-19
Fuchsia
Y-55
Bright Green
RAL-6018
Light Green
RAL-6032
Dark Green
| Liters / Capacity | Main Tank | Washing Tank | Hand Washing Tank |
|---|---|---|---|
| 1000 L | 1000 L | 40 L | 8 L |
| 800 L | 800 L | 40 L | 8 L |
| 600 L | 600 L | 40 L | 8 L |
| 500 L | 500 L | 40 L | 8 L |
| 400 L | 400 L | 40 L | 8 L |
| Liters / Capacity | A | B | H |
|---|---|---|---|
| 1000 L | 1650 mm | 750 mm | 1490 mm |
| 800 L | 1650 mm | 750 mm | 1300 mm |
| 600 L | 1200 mm | 750 mm | 1335 mm |
| 500 L | 1200 mm | 750 mm | 1200 mm |
| 400 L | 1200 mm | 750 mm | 1090 mm |
| Chassis Dimensions | C | D |
|---|---|---|
| 1000 L | 650 mm | 1550 mm |
| 800 L | 650 mm | 1550 mm |
| 600 L | 650 mm | 1100 mm |
| 500 L | 650 mm | 1100 mm |
| 400 L | 650 mm | 1100 mm |
